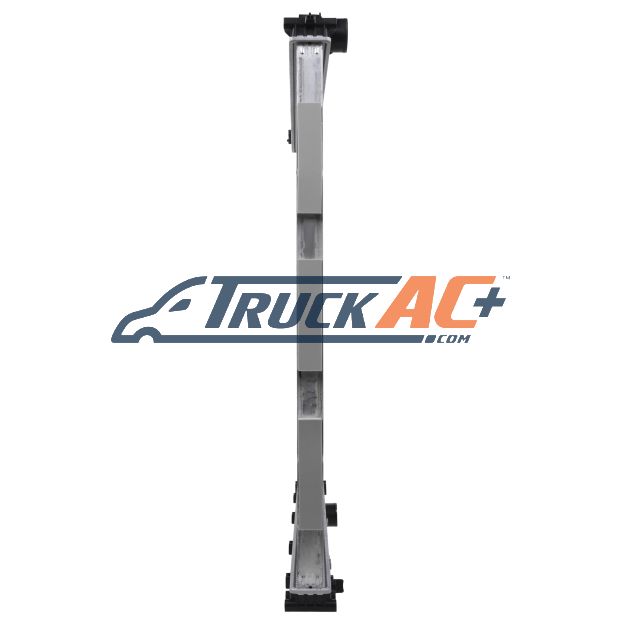

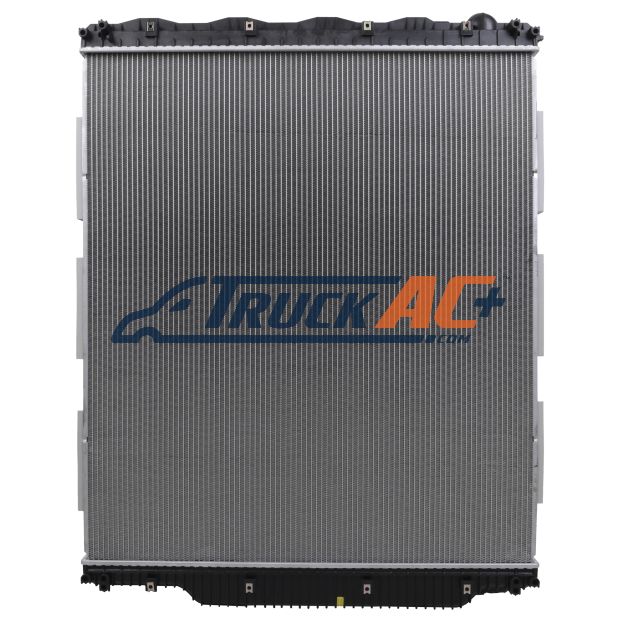

Mack, Volvo Radiator - Mack 2MF559M, Volvo Truck 21095128, Northern Radiator 238680, Reach Cooling 42-10353
In Stock
Original Price: $773.86
You Save: $70.35
-
SKUT21738
-
UPC06949521799731
-
Core MaterialAluminum
-
Core Row Quantity2
-
Tank MaterialPlastic
-
Inlet LocationTop Left
-
Frame IncludedNo
-
Outlet LocationBottom Right
-

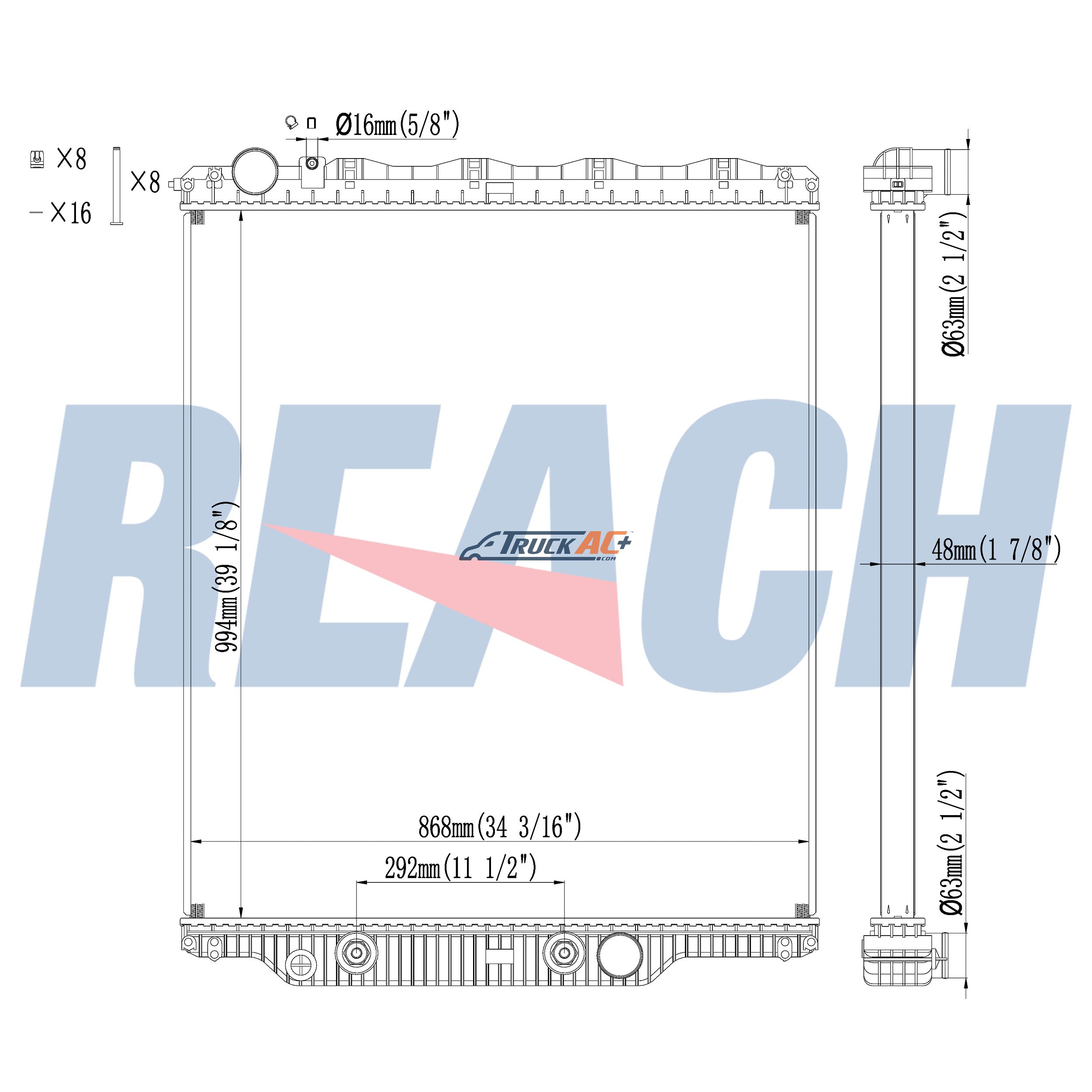

Core Height39.13 in / 994 mm
-
Core Thickness1.89 in / 48 mm
-
Engine Oil Cooler IncludedNo
-
Core Width34.17 in / 868 mm
-
Inlet Diameter2.48 in / 63 mm
-
Transmission Oil Cooler Type11 1/2 In. Engine side
-
Filler Neck IncludedNo
-
Outlet Diameter2.48 in / 63 mm
-
Transmission Oil Cooler IncludedYes
-
Transmission Oil Cooler Distance between Fittings11.5 in / 292 mm
-
Down Flow Or Cross FlowDown Flow
-
Radiator Cap IncludedNo
-
Features
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
-
Cross References
No vehicles match those filters.
| Year | Make | Model | Engine |
|---|---|---|---|
| 2008-2014 | Mack | CHU | 12.8L L6 |
| 2008-2019 | Mack | CHU | 12.8L L6 |
| 2013-2018 | Mack | GU4 | 8.9L L6 |
| 2013-2018 | Mack | GU5 | 8.9L L6 |
| 2008-2014 | Mack | GU7 | 10.8L L6, 12.8L L6 |
| 2008-2018 | Mack | GU7 | 10.8L L6, 12.8L L6 |
| 2008-2014 | Mack | GU8 | 10.8L L6, 12.8L L6 |
| 2008-2018 | Mack | GU8 | 10.8L L6, 12.8L L6 |
| 2011-2013 | Volvo | VAH | 10.8L L6, 12.8L L6 |
| 2014-2018 | Volvo | VAH | 10.8L L6, 12.8L L6 |
| 2007-2008 | Volvo | VHD | 12.1L L6 |
| 2007-2014 | Volvo | VHD | 12.8L L6 |
| 2011-2014 | Volvo | VHD | 10.8L L6 |
| 2015-2016 | Volvo | VHD | 10.8L L6, 12.8L L6 |
| 2018 | Volvo | VHD | 10.8L L6, 12.8L L6 |
- 39 1/8" x 34 3/16" x 1 7/8" Core
- Inlet 2 1/2" at Upper Left Side
- Outlet 2 1/2" at Lower Right Side
- NO Frame
