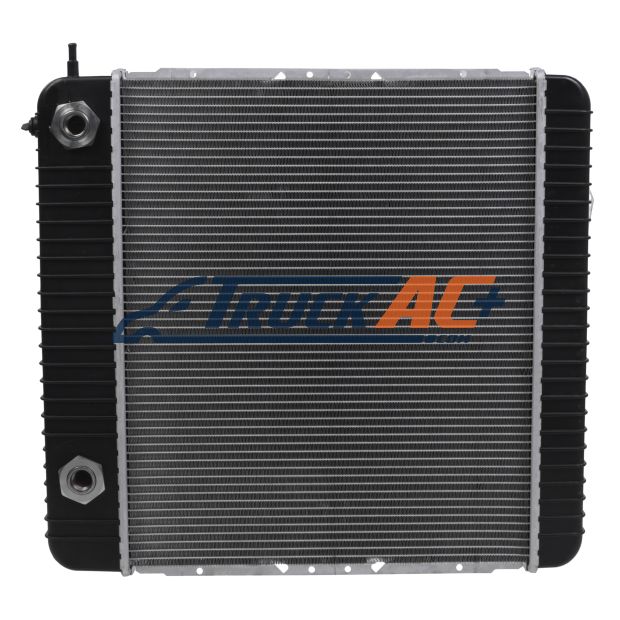

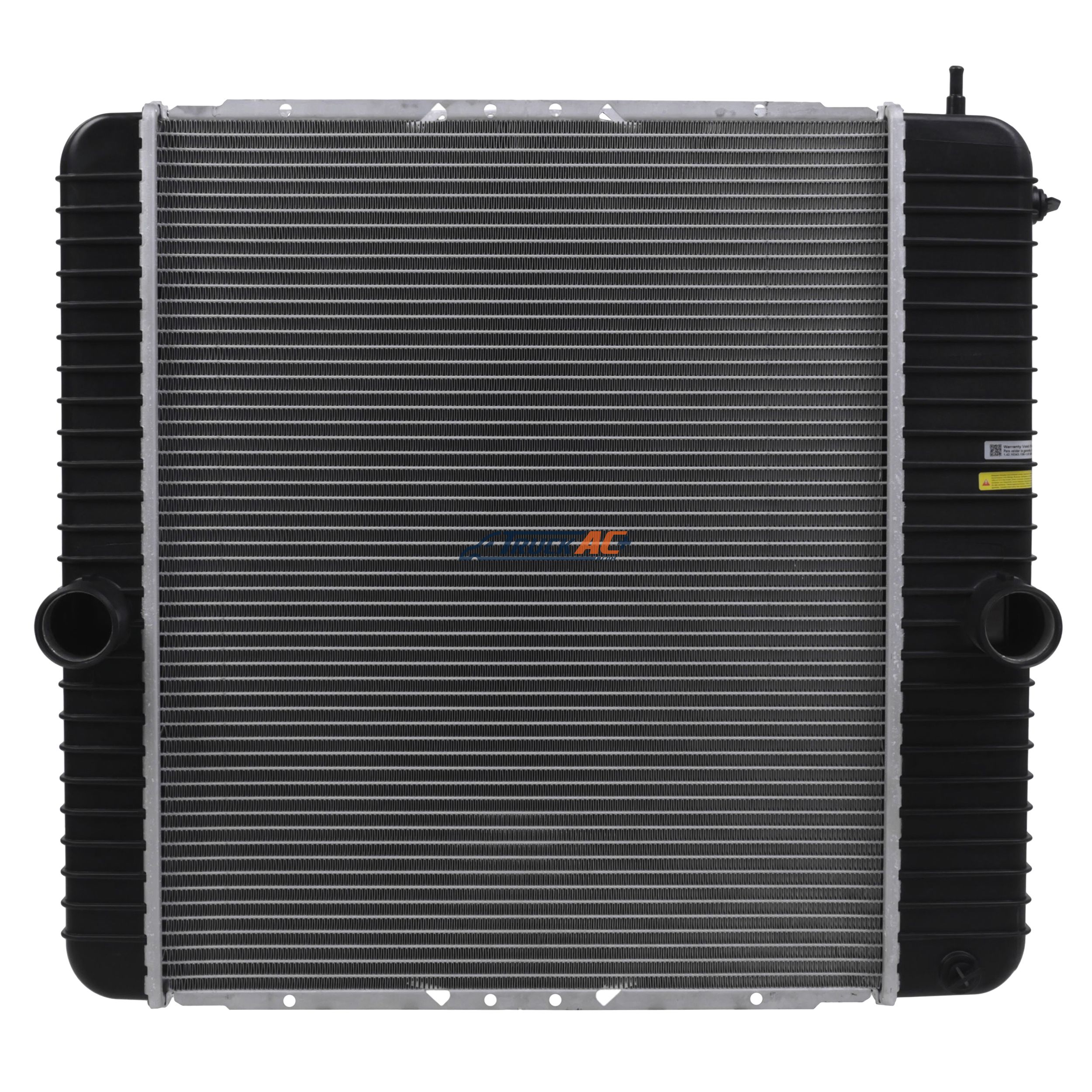

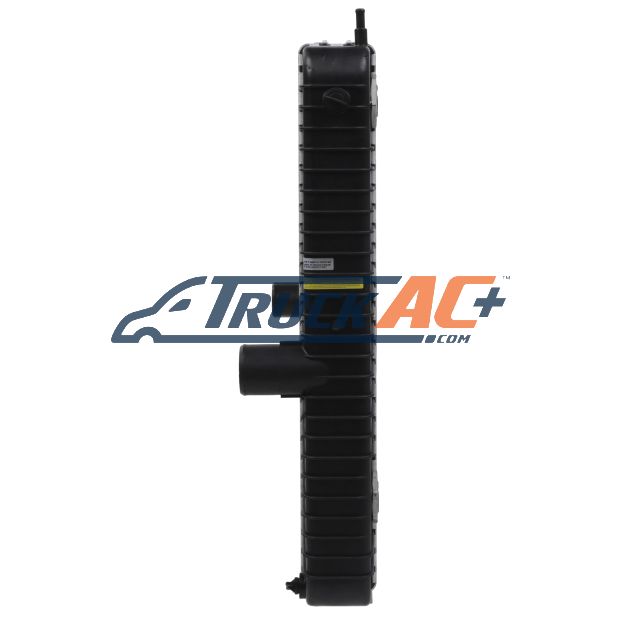

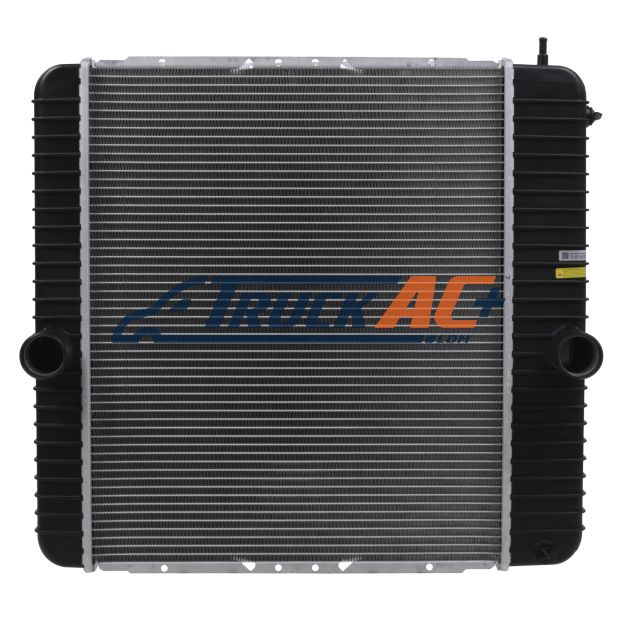

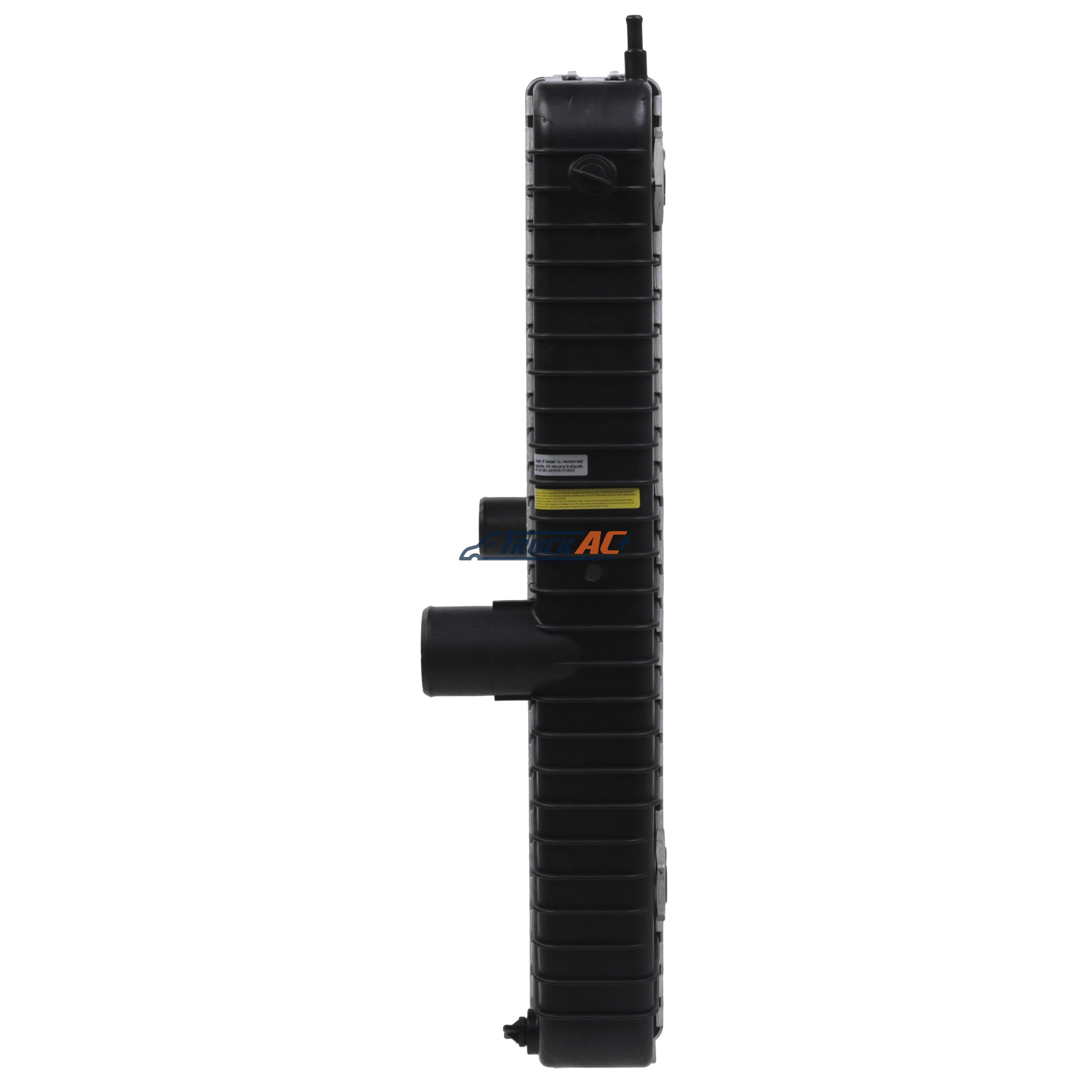

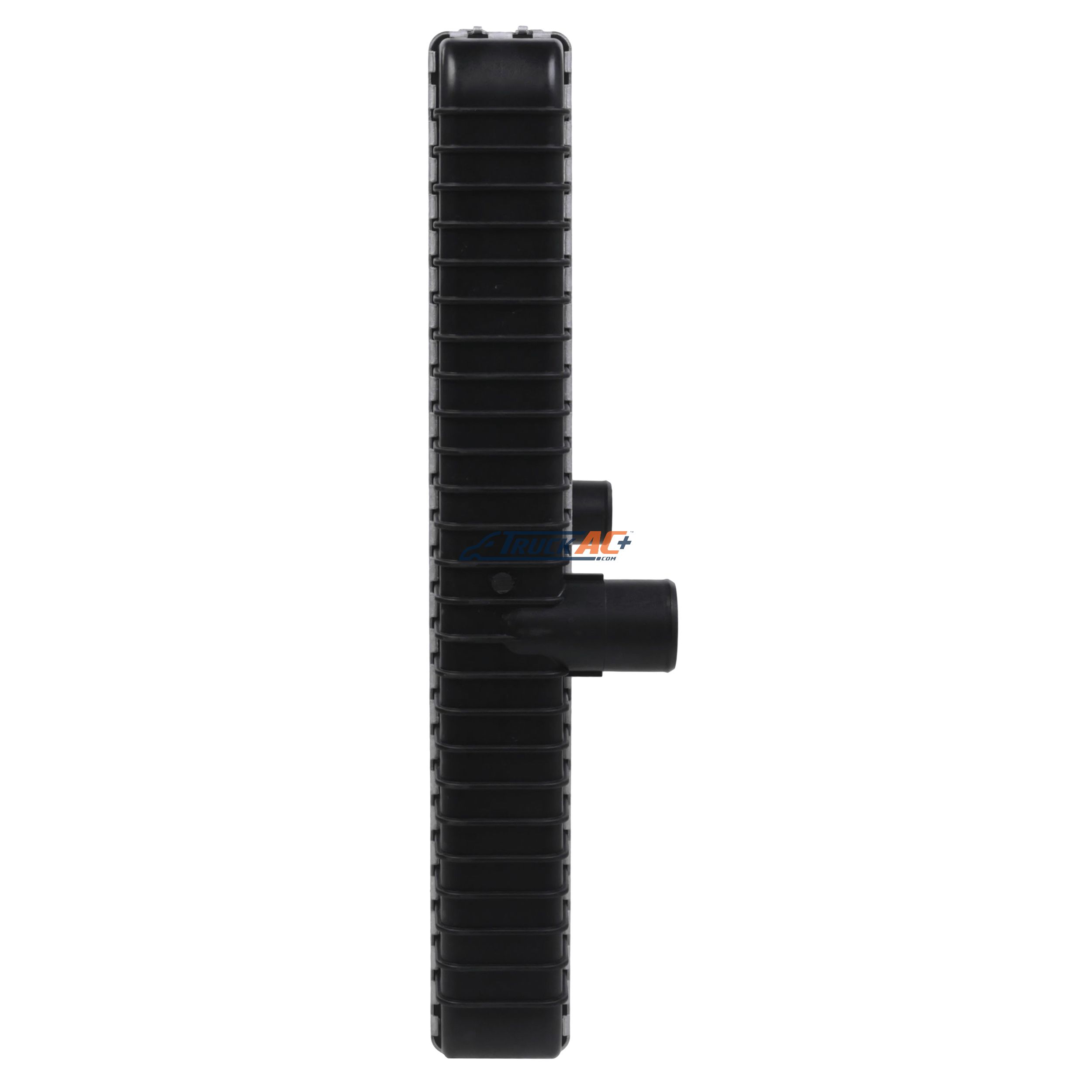

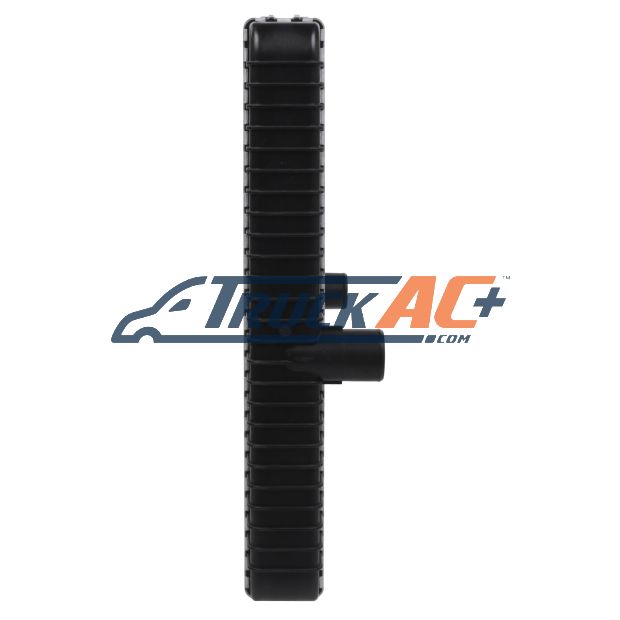

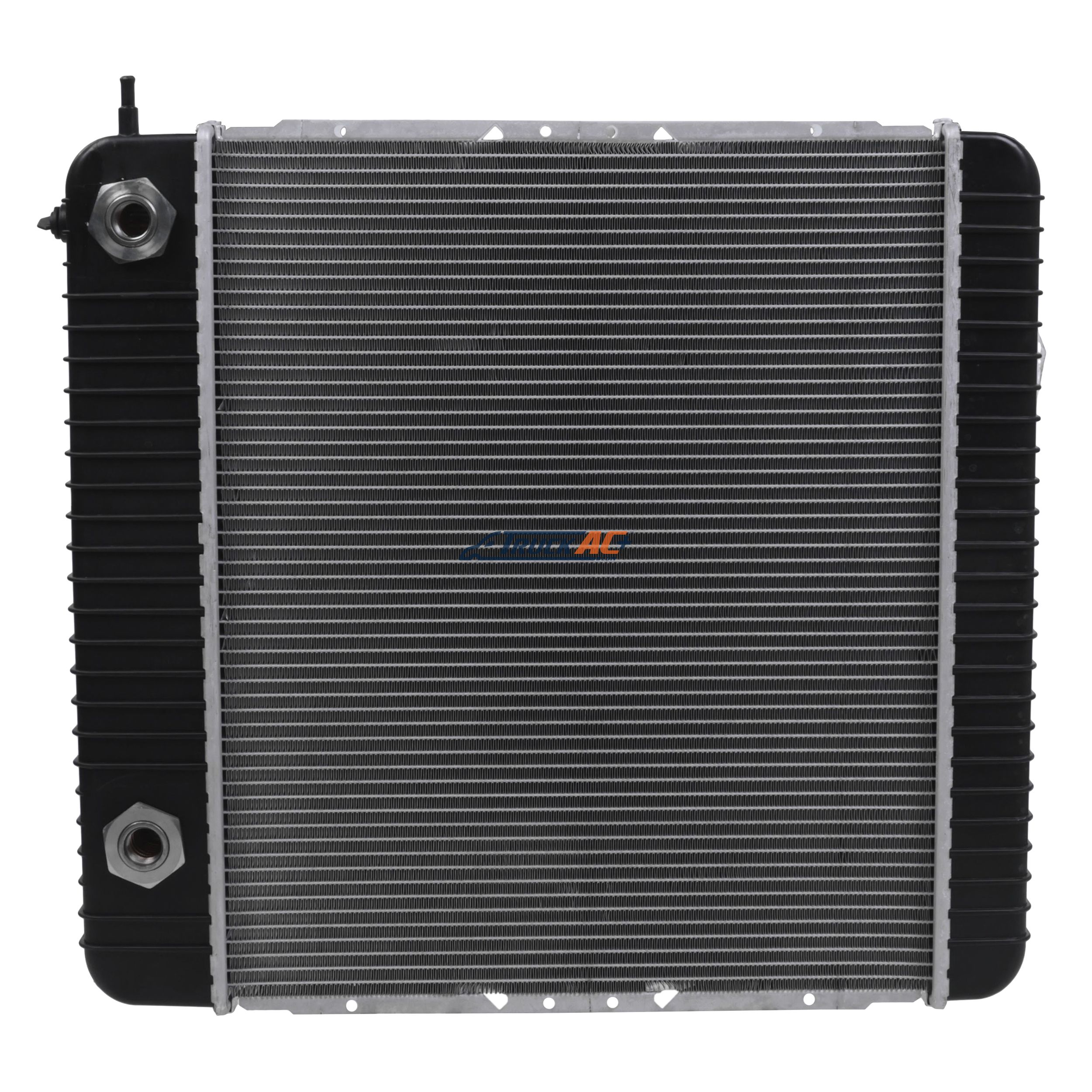

International, Ford, IC Corporation Radiator - Ford 4C4Z8005YA, Northern Radiator 238678, Spectra Premium 2001-3531, Reach Cooling 42-10343

International, Ford, IC Corporation Radiator - Ford 4C4Z8005YA, Northern Radiator 238678, Spectra Premium 2001-3531, Reach Cooling 42-10343
Save: $54.07
Part
T21731

In Stock

$540.70

Original Price: $594.77

You Save: $54.07

Same Day Shipping Icon
Same Day Shipping Available
Print Info
Product Information
  • SKU
    T21731
  • UPC
    06949521753160
  • Core Material
    Aluminum
  • Core Row Quantity
    2
  • Tank Material
    Plastic
  • Inlet Location
    Bottom Left
  • Frame Included
    No
  • Outlet Location
    Bottom Right

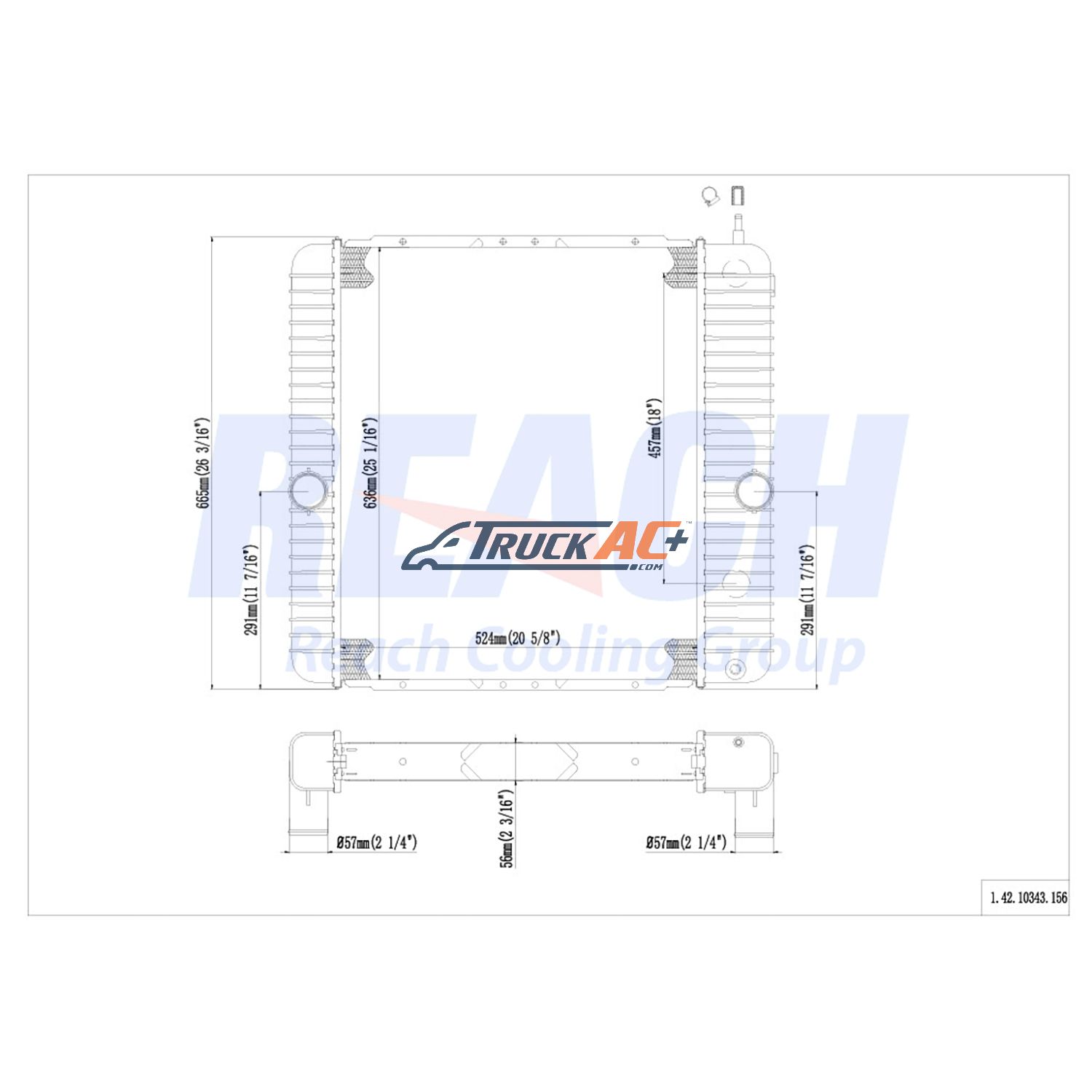

  • Core Height
    20.63 in / 524 mm
  • Core Thickness
    2.2 in / 56 mm
  • Engine Oil Cooler Included
    No
  • Core Width
    25.04 in / 636 mm
  • Inlet Diameter
    2.24 in / 57 mm
  • Filler Neck Included
    No
  • Outlet Diameter
    2.24 in / 57 mm
  • Transmission Oil Cooler Included
    Yes
  • Down Flow Or Cross Flow
    Cross Flow
  • Transmission Oil Cooler Distance between Fittings
    18 in / 457 mm
  • Radiator Cap Included
    No
  • Features
    • Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
    • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
    • Our fin edges are folded for increased stability and heat disbursement properties.
    • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
    • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
    • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
    • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Cross References
    BrandPart Number
    TEXAS TRUCK ACRC-42-10343
    1-800-Radiator2400800
    Active Radiator Supply Company6400-12
    Active Radiator Supply Company640012
    Active Radiator Supply Company640012AP
    Active Radiator Supply Company640012PTV
    Active Radiator Supply Company640012ST
    APDI8070012
    Autokool5317
    Autokool5317A
    Cancore Industries640012
    Cancore Industries640012PT
    Cancore IndustriesNAV08
    Cancore IndustriesNAV12
    CG&J IncBT7365WC
    CG&J IncBTC7365WC
    Detroit Radiator CorporationIN40OCGS
    Ford4C4Z8005YA
    Keystone Auto Industries6412
    Keystone Auto IndustriesHDC010243
    Keystone Auto IndustriesHDC010243AA
    Keystone Auto IndustriesHDC010243P
    Keystone Auto IndustriesHDC010243PA
    Keystone Auto IndustriesHDC010247
    Keystone Auto IndustriesHDC010247PA
    Lynol Cooling Systems2208-006
    Modine3E0102000000
    Modine3S10200
    Navistar2504903C91
    Navistar2504903C92
    Navistar2504903C93
    Navistar2504905C91
    Navistar2504906C92
    Navistar2505509C93
    Navistar2507383C92
    Navistar2507390C91
    Navistar2507390C92
    Navistar2508917C92
    Navistar2509357C92
    Navistar2509881C91
    Navistar2585027C91
    Navistar2585036C91
    Navistar2586048C92
    Navistar4C4Z8005YA
    Northern Factory Sales238678
    Northern Factory Sales239329
    Northern Radiator238678
    OEM2504903C92
    OEMLT1136
    OSCHD1136
    OSCHD1137
    Paccar PartsRAD42-10343TRP
    PHARCAVTX61252
    PHARCTAVTU61253
    PHARCTAVTX61252
    PHARCTAVTX61253
    PHARCTVTU61253
    PHARCTVTX61252
    PHARCVTX61252
    PHARRC2398
    Radiator Pros559329A
    Radpro LLCNAV08
    Radpro LLCNAV12
    Reach Cooling42-10343
    SerckFLA000756
    SerckFLA000757
    SerckFLX000757
    SerckS6412
    SerckSRM6125
    SerckSRM6125AT
    Spectra Premium2001-3531
    Superior Cooling Systems238678
    Thermal Solutions Manufacturing437389P
    Thermal Solutions Manufacturing437389S
    TRUCKAC+T21731
    Vista Pro437389
    Vista Pro437389S
Buyers Guide
Vehicles this part fits
Year Make Model Engine Note
2004-2007 Ford F-650 5.9L L6, 6.0L L8, 7.2L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2004-2008 Ford F-650 5.9L L6, 6.0L L8, 7.2L L6
2008 Ford F-650 6.7L L6
2004-2007 Ford F-750 5.9L L6, 6.0L L8, 7.2L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2004-2008 Ford F-750 5.9L L6, 6.0L L8, 7.2L L6
2008 Ford F-750 6.7L L6
2005-2007 IC Corporation 3000 Chassis 6.0L L8
2005-2006 IC Corporation 3000 Chassis 7.6L L6
2002 IC Corporation 3000 IC 7.3L L8, 7.6L L6, 8.7L L6
2004 IC Corporation 3000 IC 7.6L L6
2006-2007 IC Corporation 3000 IC 6.0L L8, 7.6L L6
2007 IC Corporation 3200 6.0L L8
2005 IC Corporation 3300 Chassis 6.0L L8, 7.6L L6
2008 IC Corporation BE Commercial Bus 6.0L L8
2008 IC Corporation BE School Bus 6.0L L8
2003-2004 IC Corporation CE Commercial 7.3L L8
2003-2006 IC Corporation CE Commercial 7.6L L6
2005-2008 IC Corporation CE Commercial 6.0L L8
2008 IC Corporation CE Commercial 7.6L L6
2005-2008 IC Corporation CE Integrated 6.0L L8, 7.6L L6
2002 International 3000 7.6L L6
2005 International 3000RE 7.6L L6
2002-2007 International 3200 6.0L L8, 7.6L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2003-2004 International 3200 8.7L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2005-2007 International 3300 6.0L L8 NO Frame
2008-2011 International 3300 6.0L L8
2007-2009 International 4100 6.0L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2008-2009 International 4100 6.4L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002-2007 International 4200 6.0L L8 NO Frame
2008-2010 International 4200 6.0L L8
2003-2005 International 4200LP 6.0L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2007 International 4200LP 6.0L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2008 International 4200LP 6.0L L8
2002-2007 International 4300 7.6L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002 International 4300 8.5L L4 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2003 International 4300 6.0L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002-2004 International 4300LP 7.6L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2007 International 4300LP 7.6L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002-2005 International 4400 7.6L L6, 8.7L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002 International 4400 8.5L L4 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2003 International 4400 6.0L L8 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2004-2005 International 4400 9.3L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2002-2006 International 4400LP 7.6L L6
2002-2005 International 4400LP 8.7L L6
2005-2006 International 4400LP 9.3L L6
1997 International 4900 6.7L L6, 7.3L L8, 7.6L L6, 8.5L L4, 8.7L L6 20 5/8" x 25 1/16" x 2 3/16" Core; Inlet 2 1/4"; Outlet 2 1/4"; Inlet 14 1/2" From Top Left Corner; Outlet 14 1/2" From Top Right Corner; W/ TOC (Transmission Oil Cooler) 18" Grill Side; May Require Use Of Original Mounting Rubbers; NO Frame
2005-2008 International CXT 7.6L L6
2006-2008 International CXT 6.0L L8, 9.3L L6
2005-2008 International RXT 6.0L L8
2006-2007 International RXT 9.3L L6
Product Description
When your cooling system needs attention on a Ford F-650, F-750, International, or IC Corporation medium-duty truck or bus, the Reach Cooling 42-10343 aftermarket radiator delivers a direct, correct-fit replacement built to meet or exceed original equipment specifications. This cross-flow aluminum-core, plastic-tank radiator replaces Ford 4C4Z8005YA as the primary OEM interchange, and also cross-references Northern Radiator 238678, Active Radiator Supply Company 640012PTV, Spectra Premium 2001-3531, 1-800-Radiator 2400800, and Serck FLA000756. The unit includes a built-in transmission oil cooler with 18-inch fitting spacing, making it a comprehensive drop-in solution. Fitment covers a wide range of applications: Ford F-650 and F-750 from 2004 to 2008, International 3000, 3000RE, 3200, 3300, 4100, 4200, 4200LP, 4300, 4300LP, 4400, 4400LP, 4900, CXT, and RXT models, as well as IC Corporation 3000, 3000 Chassis, 3000 IC, 3200, 3300 Chassis, BE Commercial Bus, BE School Bus, CE Commercial, and CE Integrated. Reach Cooling engineers their radiators with reinforced B-type tubes, deep-extrusion headers, thermal expansion cuts, and folded fin edges for improved durability and heat dissipation. If you are sourcing by Ford 4C4Z8005YA or any of the cross-references listed, Reach Cooling 42-10343 is the confirmed aftermarket replacement.
