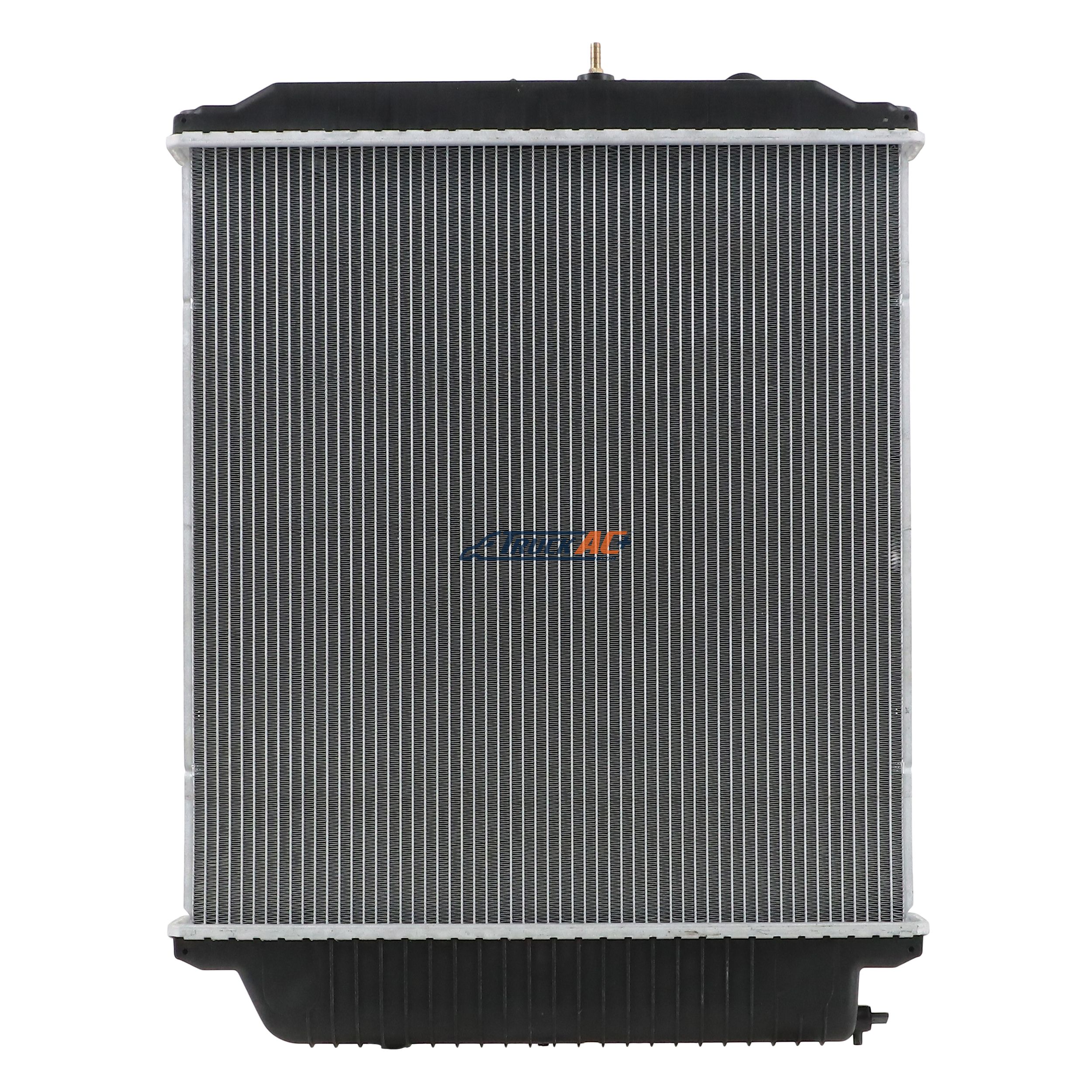

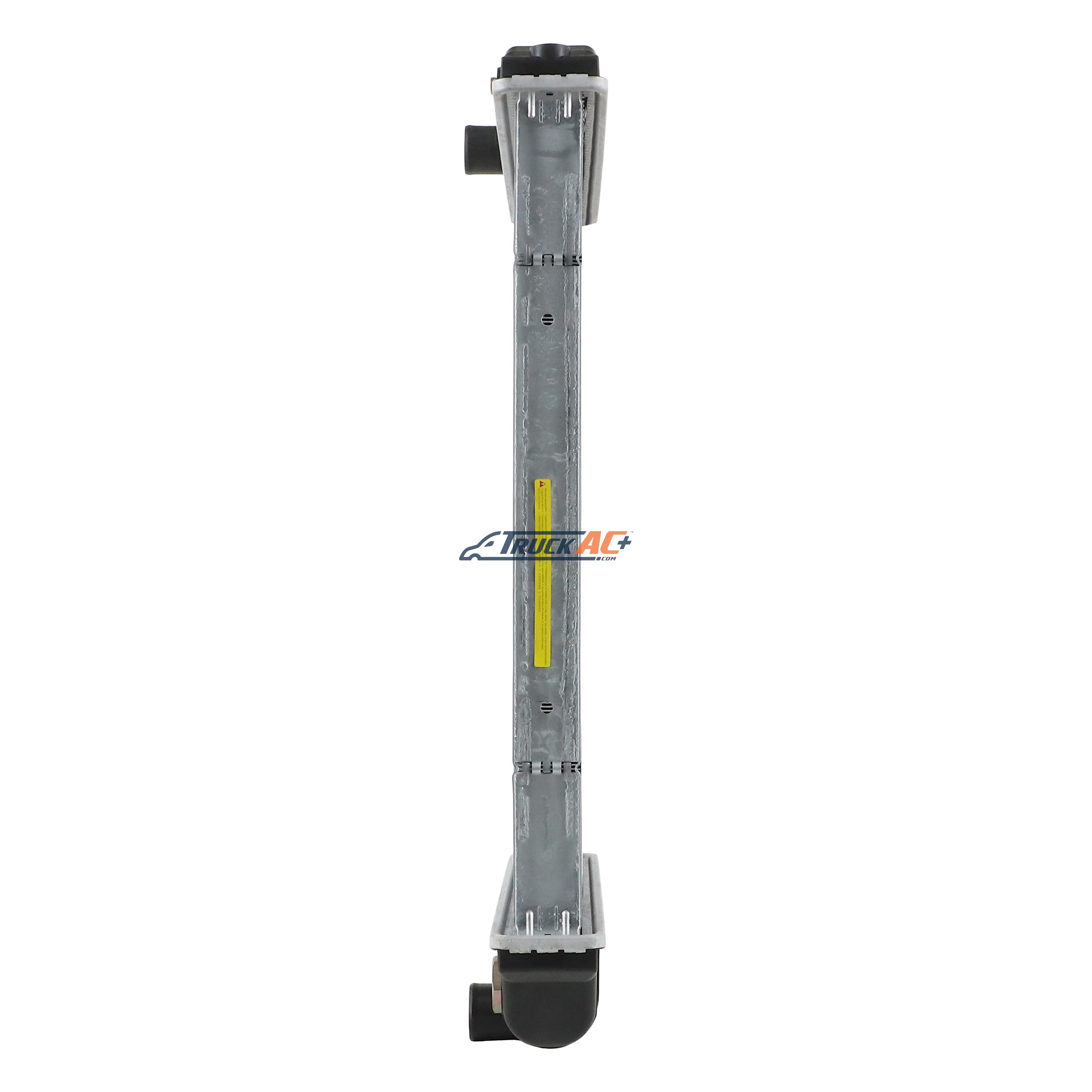

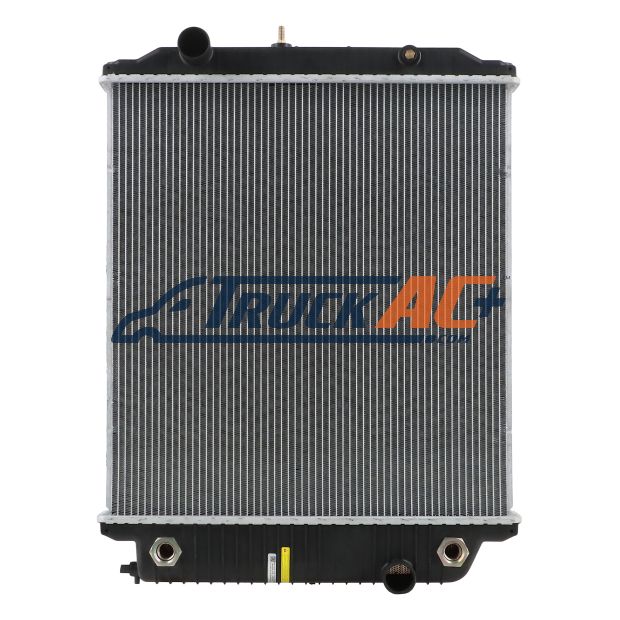

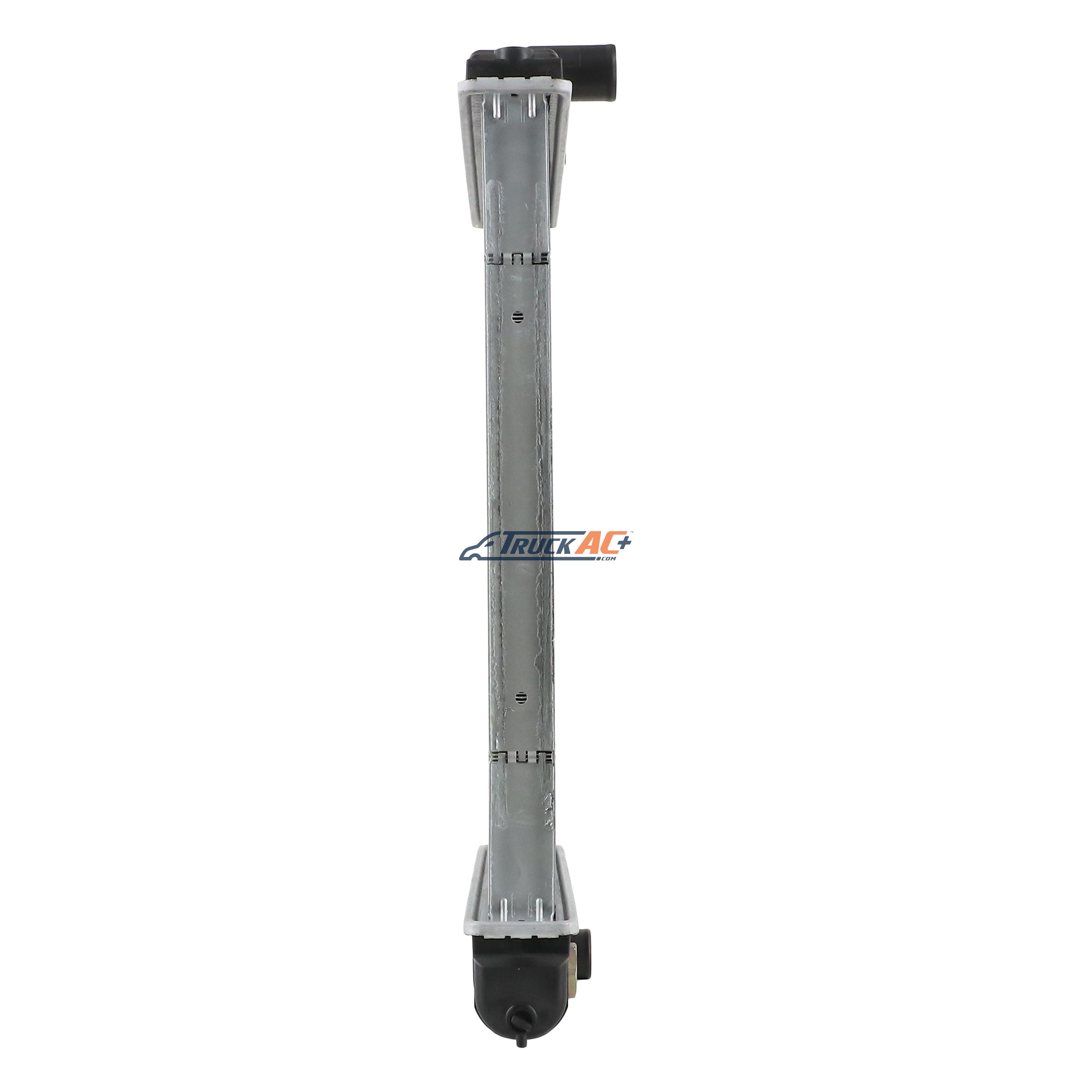

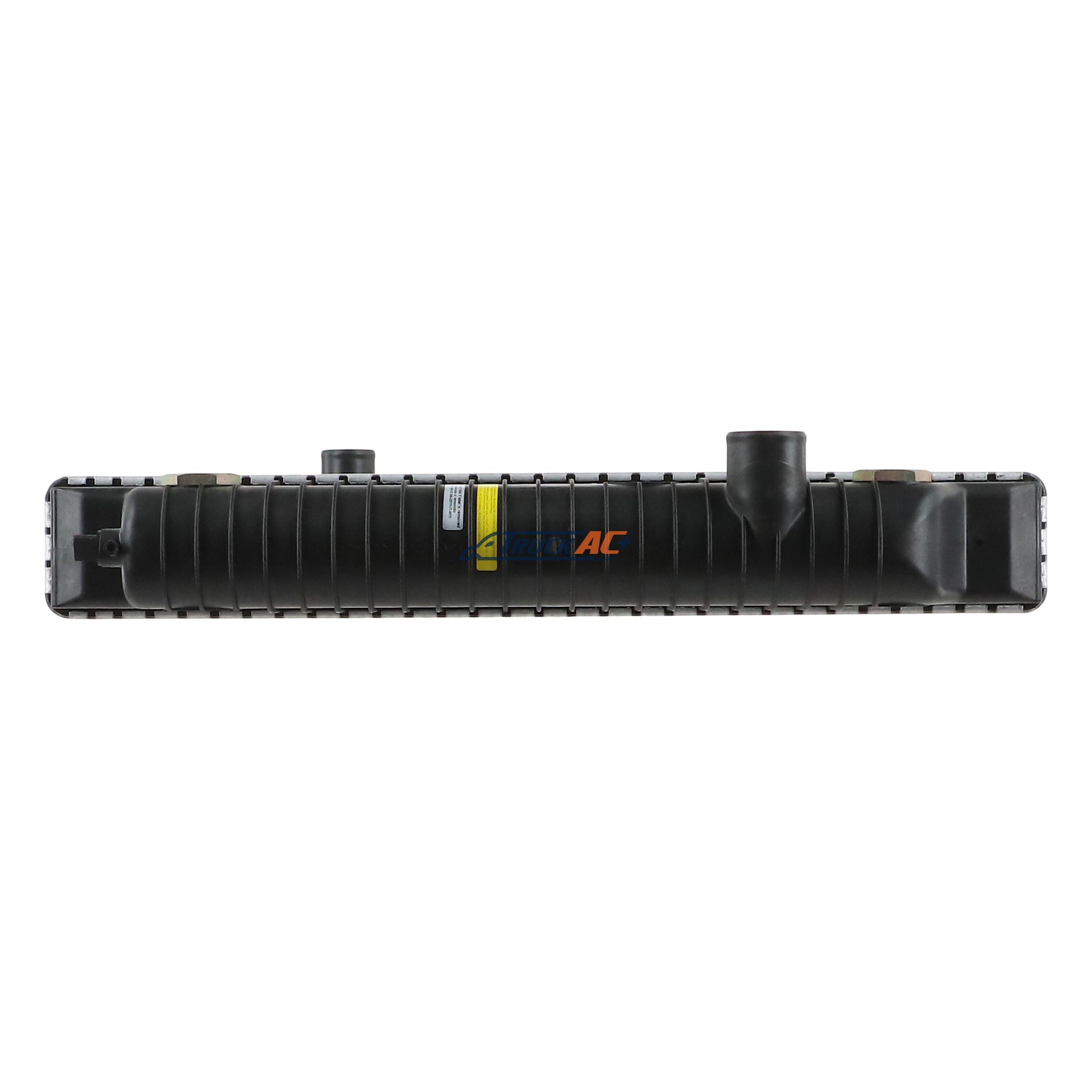

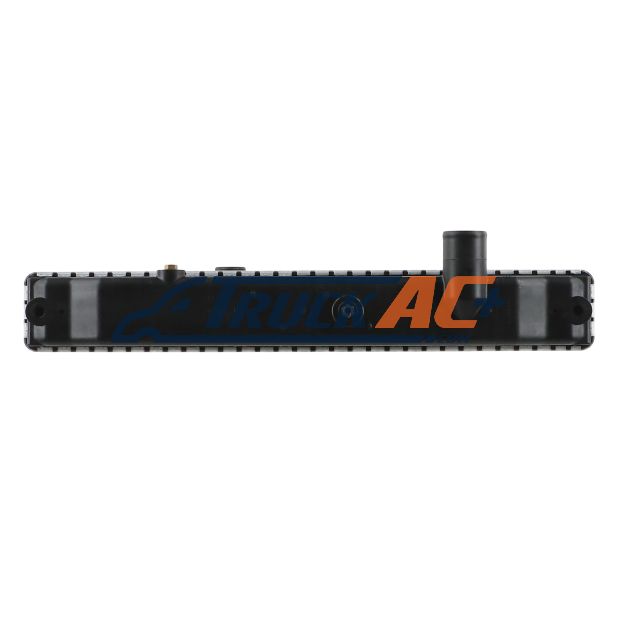

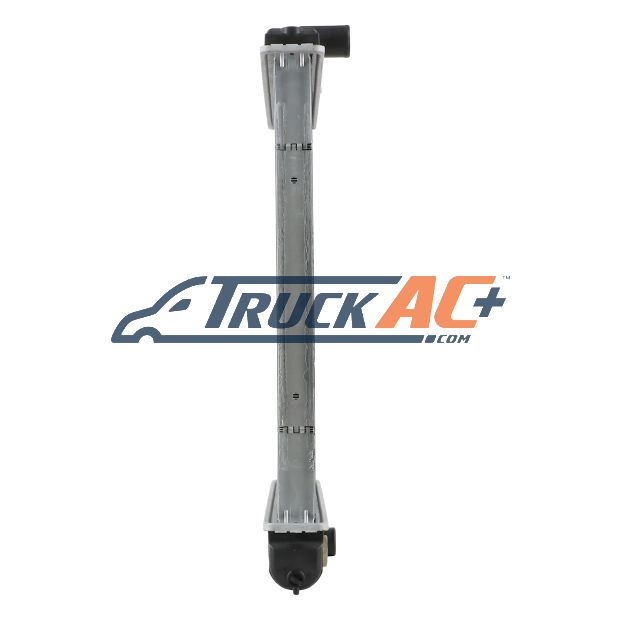

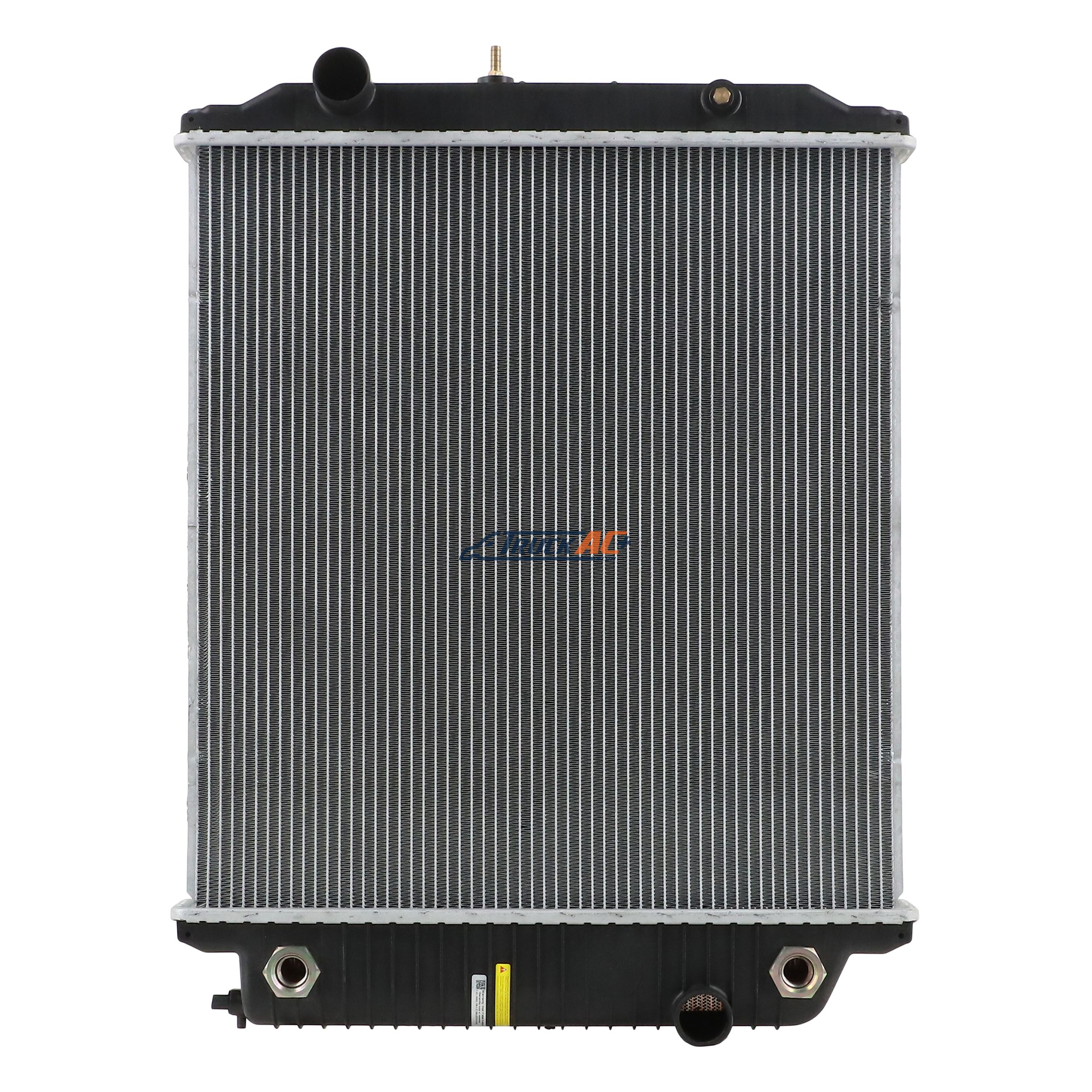

Freightliner, Thomas Radiator - Freightliner 1003669, Thomas Built Buses VAB 1102416, Northern Radiator 239387, Reach Cooling 42-10342
In Stock
Original Price: $694.91
You Save: $63.17
-
SKUT21730
-
UPC06949521753153
-
Core MaterialAluminum
-
Core Row Quantity2
-
Outlet Header Length26.625 in / 676.3 mm
-
Tank MaterialPlastic
-
Inlet Header Width3.5 in / 88.9 mm
-
Inlet LocationTop Left
-
Frame IncludedNo
-
Outlet LocationBottom Right
-
External Transmission Oil Cooler LocationEngine Side
-
Core Height27.36 in / 695 mm
-
Core Thickness2.2 in / 56 mm
-
Engine Oil Cooler IncludedNo
-
Core Width25.04 in / 636 mm
-
Inlet Diameter2 in / 51 mm
-
Filler Neck IncludedNo
-
Outlet Diameter2 in / 51 mm
-
Outlet Header Width3.5 in / 88.9 mm
-
Transmission Oil Cooler IncludedYes
-
Down Flow Or Cross FlowDown Flow
-
Transmission Oil Cooler Distance between Fittings18.03 in / 458 mm
-
Radiator Cap IncludedNo
-
Inlet Header Length26.625 in / 676.3 mm
-
Features
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
-
Cross References
No vehicles match those filters.
| Year | Make | Model | Engine |
|---|---|---|---|
| 2007 | Freightliner | MB Line | 4.3L L4 |
| 2007-2010 | Freightliner | MB Line | 5.9L L6, 6.7L L6 |
| 2005-2007 | Freightliner | MC Line | 5.9L L6 |
| 2007-2008 | Freightliner | MC Line | 6.7L L6 |
| 2004-2009 | Freightliner | MT35 | 5.9L L6 |
| 2004-2006 | Freightliner | MT45 | 4.3L L4, 5.9L L6 |
| 2007 | Freightliner | MT45 | 4.3L L4 |
| 2007-2011 | Freightliner | MT45 | 5.9L L6 |
| 2008-2015 | Freightliner | MT45 | 6.7L L6 |
| 2011-2015 | Freightliner | MT45 | 6.0L L8 |
| 2003-2011 | Freightliner | MT55 | 5.9L L6 |
| 2004-2007 | Freightliner | MT55 | 4.3L L4 |
| 2005 | Freightliner | MT55 | 6.4L L6 |
| 2008-2015 | Freightliner | MT55 | 6.7L L6 |
| 2009 | Freightliner | MT55 | 11.9L L6 |
| 2011-2015 | Freightliner | MT55 | 6.0L L8 |
| 2008 | Thomas | Saf-T-Liner | 7.2L L6, 8.1L L6, 8.3L L6 |
| 2009-2010 | Thomas | Saf-T-Liner | 8.9L L6 |
| 2010 | Thomas | Saf-T-Liner | 4.3L L4 |

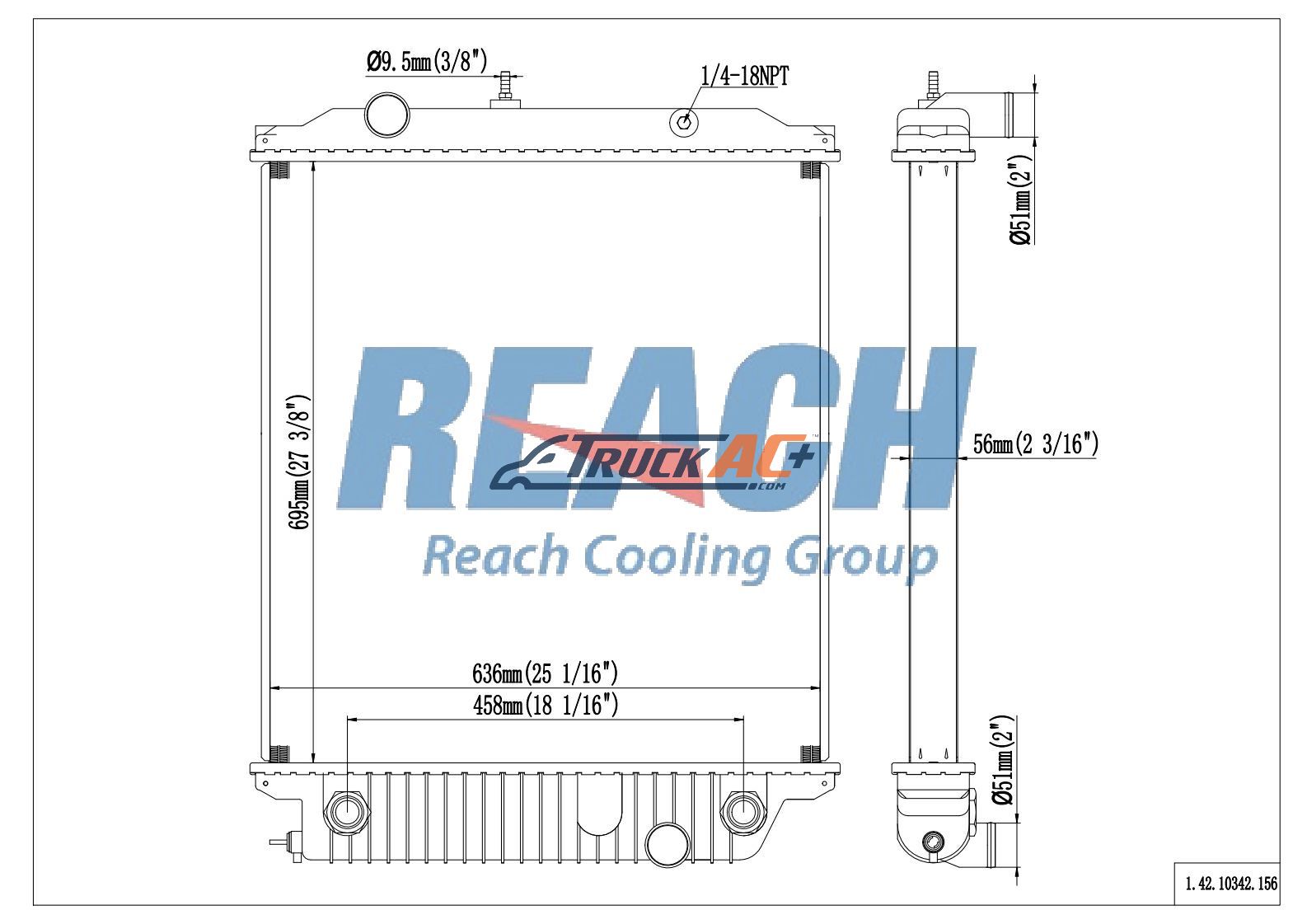

- 27 3/8" x 25 1/16" x 2 3/16" Core
- Inlet 2"
- Outlet 2"
- W/ TOC (Transmission Oil Cooler) 18 1/16" Engine Side
- Inlet 6 1/2" From Top Left Corner
- Outlet 8" From Bottom Right Corner
- NO Frame
